Models made out of high detail resin are constructed from a photo-polymeric liquid. High-detail resin is ideal for small and/or very finely-detailed visual models. Although the functional use of this material is rather limited, the model will have a smooth surface.
Ships as of 8 business days

Design Specifications

Minimum Wall Thickness
1 mm
Minimum Details
0.2 to 0.3 mm
Accuracy
±0.1% (with a lower limit of ±0.2 mm)
Maximum Size
100 x 100 x 100 mm
Clearance
0.4 mm
Interlocking or Enclosed Parts?
Yes

Pricing Info

The pricing for High Detail Resin is based on:

  • Model volume: The volume of your model is used to calculate the material cost (mm³)
  • The box around your model: An imaginary box around your model determines how much space your design will take up in the printer (X * Y * Z = mm³)
  • Orientation: The way your model is positioned on the print platform will impact the support generation and therefore the price

If you order two or more copies of a model, the price automatically decreases because the preparation of multiple copies can be carried out more efficiently.

Typical Use

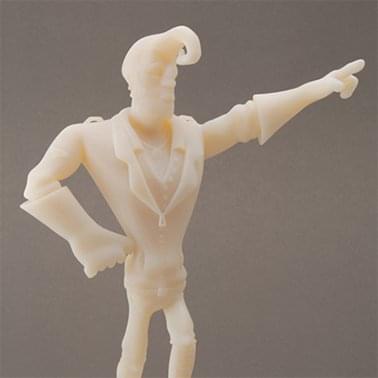

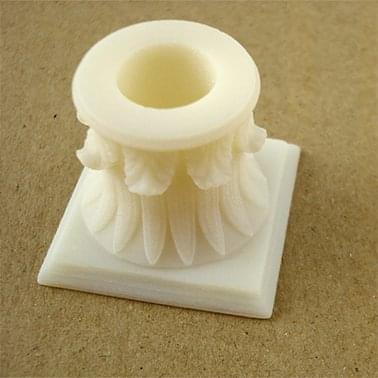

This material can be used for small, detailed parts and figures.

Technology

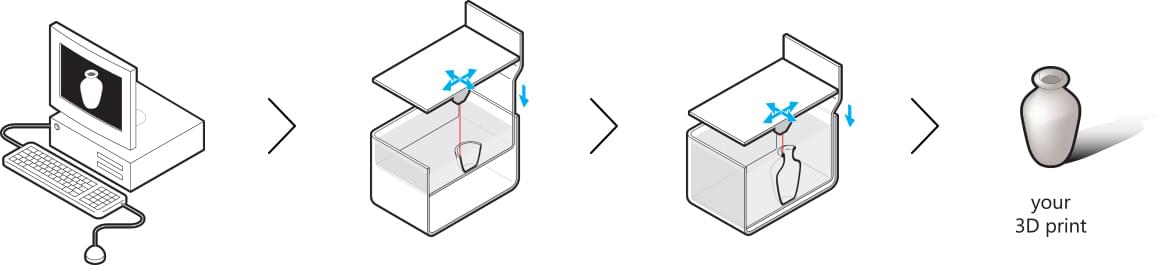

PolyJet prototyping technology is used to build your design with this material. Objet’s patented PolyJet inkjet technology works by jetting photopolymer materials in ultra-thin layers onto a build tray, layer by layer until the model is completed. Each photopolymer layer is cured by UV light immediately after being jetted, producing fully cured models that can be handled and used immediately. The gel-like support material, which is specially designed to support complicated geometries, can easily be removed by hand and water jetting.

Additional Information

  • We recommend that models in high-detail resin don't exceed the dimensions of 100 x 100 x 100 mm.
  • Support material is printed together with the model. It has to be removed and limits the freedom of design.
  • Post finishing a high detail model with paint is possible but leads to a possible loss of detail.
  • Keep the natural model out of the direct sunlight to prevent discoloration. Painting or varnishing your model will prevent or limit discoloration.

Sample Kit

Learning about our materials is one thing, seeing and touching them another. That's why we've designed sample kits based on our Periodic Table of Materials.

Resin Sample Kit

Resin Sample Kit

Includes a sample of High Detail Resin, Standard Resin, Mammoth Resin and Gray Resin.

$ 43.00
INCLUDES 25 € VOUCHER

Additional Materials

We want you to have access to as many 3D printing materials as possible, so you can make the best choice for your project. If you didn’t really find what you were looking for on i.materialise, you might want to take a look at Materialise OnSite. OnSite is our other online platform, mainly used by professionals who need rapid prototyping and manufacturing in an industrial environment.

This means you can additionally find these materials on OnSite:

  • Agilus Black: A material for soft, flexible prototypes that provides superior tear-resistance, elongation at break and rubber-like texture.
  • Composite Materials: A combination of VeroWhitePlus and Agilus Black with preset combinations of mechanical properties: Shore A40, Shore A50, Shore A60, Shore A70, Shore A85 or Shore A95.
