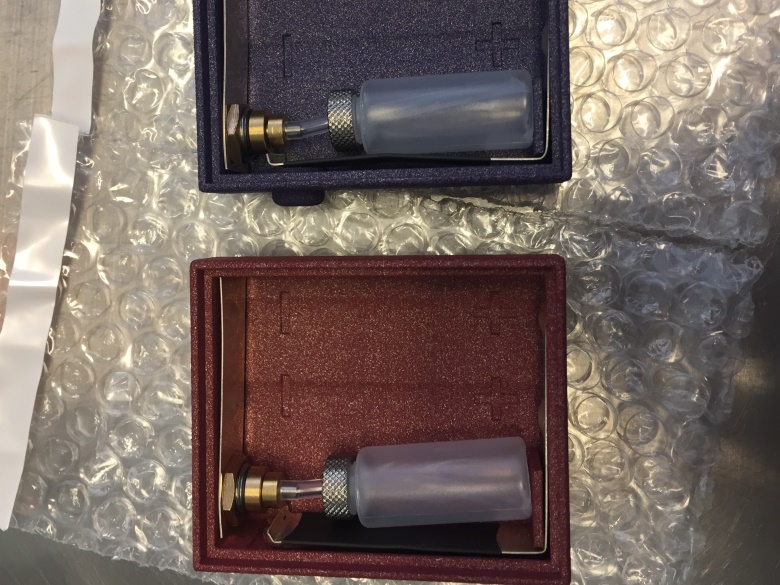

Dual 20700 DIY - includes frame - lid - button in one

Description

VanBoxMods - DIY dual 20700 mod.  Includes the frame, lid, and button in 1 print.  Uses large 3mm stand offs to ensure that the lid doesn't break away from the body during processing/shipping. Can be difficult to cut away, I use heavy shears to remove the lid, then flush mount cutters to remove as much material is possible, and then finally a Dremel to smooth away the nubs left.  Only available in mat alumide gray.  Dye yourself using rit dyemore following instructions on the bottle.

Parts -

From Modmaker.co.uk

1 of the following Black Washer - http://www.modmaker.co.uk/ModMakerDesigns/MM510-Connectors-Washers/MM510-Black-Aluminium-Flat-Washer-22mm

or

Brass Washer http://www.modmaker.co.uk/ModMakerDesigns/MM510-Connectors-Washers/MM510-Brass-Flat-Washer-22mm

or

Silver Washer http://www.modmaker.co.uk/ModMakerDesigns/MM510-Connectors-Washers/MM510-Stainless-Steel-Flat-Washer-22mm

510

http://www.modmaker.co.uk/ModMakerDesigns/MM510-Connectors-Washers/MM510-Squonker-Connector

Bottle

http://www.modmaker.co.uk/ModMakerDesigns/MM-Dinky-Silicone-Squonker-Bottle-Kit-Dark

or

http://www.modmaker.co.uk/ModMakerDesigns/MM-Dinky-Silicone-Squonker-Bottle-Kit-Light

or

http://www.modmaker.co.uk/ModMakerDesigns/MM-Squonker-Bottle-Kit

From Bopper Metal Supply (ask then to pop the hole for the 510)

https://boppermetalsupply.com/collections/sterling-silver/products/sterling-silver-cuff?variant=26029113993

If buying 6 inch strips then you'll need 2.

Optional

510 large nut (optional)

http://www.modmaker.co.uk/ModMakerDesigns/MM510-Large-Positive-Nut

510 lock (for use with small nut (small nut comes with the 510))

http://www.modmaker.co.uk/ModMakerDesigns/MM510-Connectors-Washers/MM510-Positive-Safety-Lock-Standard-Pack-Of-2

Use at your own risk

Print at your risk
